March 2021: backups with Plakar

TL;DR: I wrote a backup utility called plakar.

Shout outs to my patrons !

As usual, a huge thanks goes to the people sponsoring me on patreon, github or liberaPay, the work in this post was made possible by my sponsorship.

Let’s start with some LoFi

Relax.

I have a youtube channel (subscribe ! now !)

Plakar: Yet another backup utility ?

Yes, I wrote another backup utility.

I backup many hosts on a daily basis and while there are many different tools, I always fallback to using scripts built on top of rsync to do incremental backups, which always results in customization for this or that host.

I want backups that are easy to perform and restore, that do not require me to remember a ton of options, that lets me work with snapshots independant one of another instead of increments, that allow me to browse the content easily and compare snapshots without restoring them, that store data efficiently (compressed and deduped), and finally that lets me back things up locally or remotely to machines I own.

I’ve looked into various solutions and I figured that the best option for me was to write a tool that did exactly what I wanted. Also, it’s fun to write code.

What is plakar ?

The plakar utility is a tool that performs backups as snapshots of a tree structure, scanning subdirectories and files, and storing them efficiently in a repository while deduplicating redundant data. Once a snapshot has been taken of a directory, it can be inspected and restored at will.

How does it work ?

To perform a backup, you only need to call plakar with the push subcommand and a set of directories that should be part of the snapshot. This will cause plakar to scan the directories, collect inode information regarding every subdirectory and files, split files into chunks and push them to the repository.

$ plakar push /bin
82711aee-6485-445b-98f4-6cae51c83035: OK
$

The ls subcommand allows listing snapshots present in the repository:

$ plakar ls
82711aee-6485-445b-98f4-6cae51c83035 [2021-03-27T22:05:00Z] (size: 10 MB, files: 36, dirs: 1)
$

The pull subcommand allows restoring a particular snapshot:

$ plakar pull 82711aee-6485-445b-98f4-6cae51c83035
82711aee-6485-445b-98f4-6cae51c83035: OK

$ ls -l bin
total 9336
-rwxr-xr-x  1 root  wheel   121104  1 Jan  2020 [
-r-xr-xr-x  1 root  wheel  1296640  1 Jan  2020 bash
-rwxr-xr-x  1 root  wheel   121968  1 Jan  2020 cat
-rwxr-xr-x  1 root  wheel   107552  1 Jan  2020 chmod
-rwxr-xr-x  1 root  wheel   123232  1 Jan  2020 cp
-rwxr-xr-x  1 root  wheel  1104640  1 Jan  2020 csh
-rwxr-xr-x  1 root  wheel   277408  1 Jan  2020 dash
-rwxr-xr-x  1 root  wheel   139264  1 Jan  2020 date
-rwxr-xr-x  1 root  wheel   122160  1 Jan  2020 dd
-rwxr-xr-x  1 root  wheel   121840  1 Jan  2020 df
-rwxr-xr-x  1 root  wheel   120848  1 Jan  2020 echo
-rwxr-xr-x  1 root  wheel   205648  1 Jan  2020 ed
-rwxr-xr-x  1 root  wheel   121504  1 Jan  2020 expr
-rwxr-xr-x  1 root  wheel   120864  1 Jan  2020 hostname
-rwxr-xr-x  1 root  wheel   121232  1 Jan  2020 kill
-r-xr-xr-x  1 root  wheel  2552352  1 Jan  2020 ksh
-rwxr-xr-x  1 root  wheel   329344  1 Jan  2020 launchctl
-rwxr-xr-x  1 root  wheel   105136  1 Jan  2020 link
-rwxr-xr-x  1 root  wheel   105136  1 Jan  2020 ln
-rwxr-xr-x  1 root  wheel   157360  1 Jan  2020 ls
-rwxr-xr-x  1 root  wheel   104752  1 Jan  2020 mkdir
-rwxr-xr-x  1 root  wheel   106176  1 Jan  2020 mv
-rwxr-xr-x  1 root  wheel   291152  1 Jan  2020 pax
-rwsr-xr-x  1 root  wheel   173568  1 Jan  2020 ps
-rwxr-xr-x  1 root  wheel   120832  1 Jan  2020 pwd
-rwxr-xr-x  1 root  wheel   106000  1 Jan  2020 rm
-rwxr-xr-x  1 root  wheel   104368  1 Jan  2020 rmdir
-rwxr-xr-x  1 root  wheel   120912  1 Jan  2020 sh
-rwxr-xr-x  1 root  wheel   120784  1 Jan  2020 sleep
-rwxr-xr-x  1 root  wheel   138656  1 Jan  2020 stty
-rwxr-xr-x  1 root  wheel   120464  1 Jan  2020 sync
-rwxr-xr-x  1 root  wheel  1104640  1 Jan  2020 tcsh
-rwxr-xr-x  1 root  wheel   121104  1 Jan  2020 test
-rwxr-xr-x  1 root  wheel   106000  1 Jan  2020 unlink
-rwxr-xr-x  1 root  wheel   120752  1 Jan  2020 wait4path
-rwxr-xr-x  1 root  wheel  1331248  1 Jan  2020 zsh
$

Compression and deduplication

When plakar performs a snapshot, it splits every file into content-defined chunks and checks if they are available in the repository before pushing them, in a way similar to what rsync does.

Each chunk is compressed before being written to the repository, so that between compression and deduplication, a saved snapshot may take less space than the original directory:

$ du -sh /bin
4.6M    /bin

$ du -sh ~/.plakar
3.8M    /Users/gilles/.plakar

Furthermore, since this deduplication takes place globally in the repository, pushing multiple times the same content doesn’t cause the plakar to grow much as it only grows by the size of the snapshot index:

$ plakar push /bin
f2645591-4b06-4512-89e2-dae8ad1e2360: OK

$ plakar push /bin
c0aa514b-452f-4122-a53f-99e984cb0548: OK

$ plakar push /bin
3630358c-c634-4ad9-960d-f864d1eb56f5: OK

$ plakar push /bin
e521e447-5c2a-429f-b637-41561daa3826: OK

$ plakar push /bin
a83fe7bb-341f-4cf1-bad6-c2b1933422f8: OK

$ plakar ls
82711aee-6485-445b-98f4-6cae51c83035 [2021-03-27T22:05:00Z] (size: 10 MB, files: 36, dirs: 1)
f2645591-4b06-4512-89e2-dae8ad1e2360 [2021-03-27T22:06:17Z] (size: 10 MB, files: 36, dirs: 1)
c0aa514b-452f-4122-a53f-99e984cb0548 [2021-03-27T22:06:17Z] (size: 10 MB, files: 36, dirs: 1)
3630358c-c634-4ad9-960d-f864d1eb56f5 [2021-03-27T22:06:18Z] (size: 10 MB, files: 36, dirs: 1)
e521e447-5c2a-429f-b637-41561daa3826 [2021-03-27T22:06:18Z] (size: 10 MB, files: 36, dirs: 1)
a83fe7bb-341f-4cf1-bad6-c2b1933422f8 [2021-03-27T22:06:19Z] (size: 10 MB, files: 36, dirs: 1)

$ du -sh ~/.plakar
3.8M    /Users/gilles/.plakar

Snapshots UUID prefix-based lookup

Because using an UUID as parameter to subcommands is painful, plakar performs prefix-based lookup and allows using the beginning of an UUID as long as it is not ambiguous:

$ plakar pull 3
3630358c-c634-4ad9-960d-f864d1eb56f5: OK

In case of ambiguity, it warns so that a less ambiguous prefix can be provided:

$ plakar ls|grep ^4
45de4fd3-d177-4378-84cb-077b2ef297fb [2021-03-27T23:09:11Z] (size: 10 MB, files: 36, dirs: 1)
4c467893-f959-43cb-858f-c50b8c46a86d [2021-03-27T23:17:05Z] (size: 10 MB, files: 36, dirs: 1)

$ plakar pull 4
2021/03/28 00:17:15 plakar: snapshot ID is ambigous: 4 (matches 2 snapshots)

$ plakar pull 45
45de4fd3-d177-4378-84cb-077b2ef297fb: OK

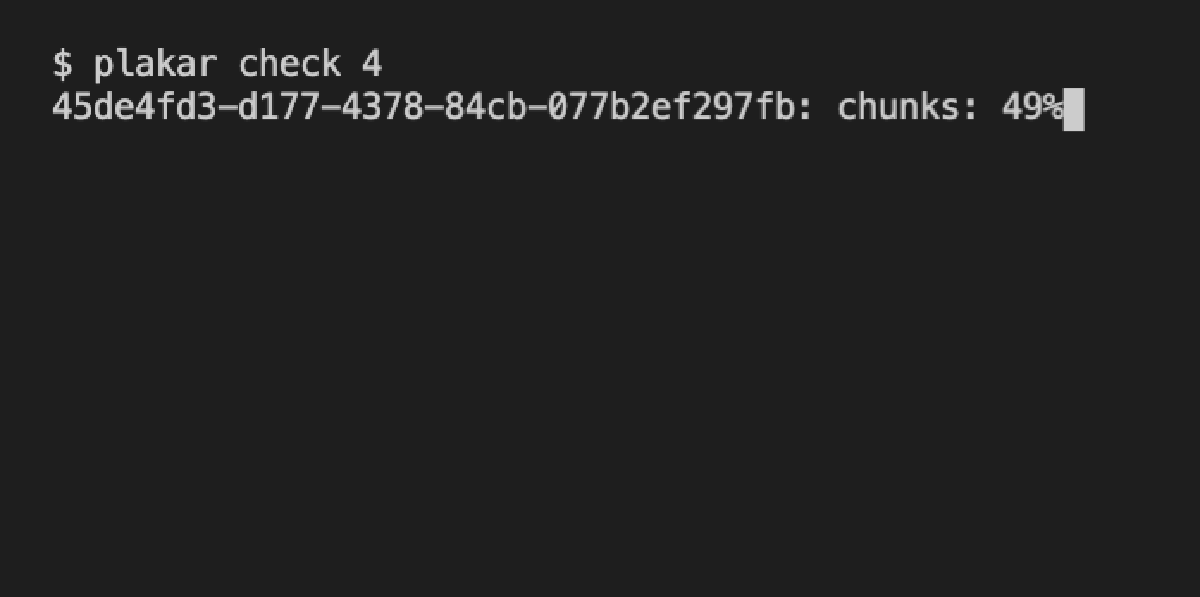

Snapshots health check

Backups are not useful if they can’t be restored, but it’s also painful to create a backup and try restoring just to know if it would work. To cope with this, plakar supports health checking snapshots without actually restoring them:

$ plakar check 3
3630358c-c634-4ad9-960d-f864d1eb56f5: OK

What it does is that it fetches the snapshot index, checks that everything referenced in the snapshot exists in the repository, and does a few sanity checks to verify if it could restore the entirety of the snapshot if requested.

Snapshots restoration

As shown in the example above, restoring a snapshot is as simple as typing:

$ plakar pull 3
3630358c-c634-4ad9-960d-f864d1eb56f5: OK

But this performs a full snapshot restore, whereas sometimes what you really want is a partial restore. For this, plakar supports providing a path within a snapshot pointing either to a subdirectory or to a file:

$ plakar pull 3:/bin/ls
3630358c-c634-4ad9-960d-f864d1eb56f5:/bin/ls: OK

$ ls -l bin
total 312
-rwxr-xr-x  1 gilles  staff  157360 27 Mar 23:18 ls

While doing the restore, plakar will check every chunk and their checksums to detect any corruption:

$ rm -rf ~/.plakar/default/chunks/00/008d4087e3e99c8f8c2c1ad76e9c6bc3d614e580e30ed45da06f93f912995538

$ plakar pull 3
/bin/ksh: missing chunk 008d4087e3e99c8f8c2c1ad76e9c6bc3d614e580e30ed45da06f93f912995538
/bin/ksh: corrupt file: checksum mismatch
3630358c-c634-4ad9-960d-f864d1eb56f5: KO

$ ls -l bin
total 19504
-rwxr-xr-x  1 gilles  staff   121104 27 Mar 23:22 [
-r-xr-xr-x  1 gilles  staff   743708 27 Mar 23:22 bash
-rwxr-xr-x  1 gilles  staff   121968 27 Mar 23:22 cat
-rwxr-xr-x  1 gilles  staff   107552 27 Mar 23:22 chmod
-rwxr-xr-x  1 gilles  staff   123232 27 Mar 23:22 cp
-rwxr-xr-x  1 gilles  staff  1104640 27 Mar 23:22 csh
-rwxr-xr-x  1 gilles  staff   277408 27 Mar 23:22 dash
-rwxr-xr-x  1 gilles  staff   139264 27 Mar 23:22 date
-rwxr-xr-x  1 gilles  staff   122160 27 Mar 23:22 dd
-rwxr-xr-x  1 gilles  staff   121840 27 Mar 23:22 df
-rwxr-xr-x  1 gilles  staff   120848 27 Mar 23:22 echo
-rwxr-xr-x  1 gilles  staff   205648 27 Mar 23:22 ed
-rwxr-xr-x  1 gilles  staff   121504 27 Mar 23:22 expr
-rwxr-xr-x  1 gilles  staff   120864 27 Mar 23:22 hostname
-rwxr-xr-x  1 gilles  staff   121232 27 Mar 23:22 kill
-r-xr-xr-x  1 gilles  staff  1258618 27 Mar 23:22 ksh
-rwxr-xr-x  1 gilles  staff   329344 27 Mar 23:22 launchctl
-rwxr-xr-x  1 gilles  staff   105136 27 Mar 23:22 link
-rwxr-xr-x  1 gilles  staff   105136 27 Mar 23:22 ln
-rwxr-xr-x  1 gilles  staff   157360 27 Mar 23:22 ls
-rwxr-xr-x  1 gilles  staff   104752 27 Mar 23:22 mkdir
-rwxr-xr-x  1 gilles  staff   106176 27 Mar 23:22 mv
-rwxr-xr-x  1 gilles  staff   291152 27 Mar 23:22 pax
-rwsr-xr-x  1 gilles  staff   173568 27 Mar 23:22 ps
-rwxr-xr-x  1 gilles  staff   120832 27 Mar 23:22 pwd
-rwxr-xr-x  1 gilles  staff   106000 27 Mar 23:22 rm
-rwxr-xr-x  1 gilles  staff   104368 27 Mar 23:22 rmdir
-rwxr-xr-x  1 gilles  staff   120912 27 Mar 23:22 sh
-rwxr-xr-x  1 gilles  staff   120784 27 Mar 23:22 sleep
-rwxr-xr-x  1 gilles  staff   138656 27 Mar 23:22 stty
-rwxr-xr-x  1 gilles  staff   120464 27 Mar 23:22 sync
-rwxr-xr-x  1 gilles  staff  1104640 27 Mar 23:22 tcsh
-rwxr-xr-x  1 gilles  staff   121104 27 Mar 23:22 test
-rwxr-xr-x  1 gilles  staff   106000 27 Mar 23:22 unlink
-rwxr-xr-x  1 gilles  staff   120752 27 Mar 23:22 wait4path
-rwxr-xr-x  1 gilles  staff  1331248 27 Mar 23:22 zsh

The snapshot is still restored as a “best effort”, but here a warning informs that ksh is not the same as the one that was initially backed up. This is not supposed to happen in practice as long as I don’t fiddle with the repository, but it is a nice sanity check.

One that would be caught by plakar check:

$ plakar check 3
3630358c-c634-4ad9-960d-f864d1eb56f5: KO

Other plakar subcommands

In addition to pull, push, ls and check, plakar supports various other subcommands.

They are more interesting when playing with text files, so let’s push /private/etc:

$ plakar push /private/etc
open /private/etc/krb5.keytab: permission denied
open /private/etc/aliases.db: permission denied
open /private/etc/racoon/psk.txt: permission denied
open /private/etc/security/audit_user: permission denied
open /private/etc/security/audit_control: permission denied
open /private/etc/sudoers: permission denied
open /private/etc/sudo_lecture: permission denied
open /private/etc/master.passwd: permission denied
open /private/etc/openldap/slapd.conf.default: permission denied
open /private/etc/openldap/DB_CONFIG.example: permission denied
98b6658b-a975-47c4-a38f-f958d8d7359f: OK

Here plakar has warned about files that couldn’t make it into the snapshot, but lets inspect what files are part of the snapshot with ls:

$ plakar ls 9:/
acc57694b78a1ea669535547ac310e7682f141b75f6ba23658078b9000dbd9ac -rw-r--r--     root    wheel    20 kB /private/etc/php-fpm.d/www.conf.default
a4dda57401575878b78c5b0bc4a6bc020675d7f285dc8a836d07f1fda0938715 -rw-r--r--     root    wheel    12 kB /private/etc/postfix/LICENSE
863f779b43680f81799688e91c18a164047a1a8e9dfff650881e50ba35530ed1 -r--r--r--     root    wheel    141 B /private/etc/uucp/port
75a3d05049424cc17623d04c5d84038ca703ae673ad4c1bcf62d8293462d90b0 -rw-r--r--     root    wheel    152 B /private/etc/pam.d/login.term
591161270b2fbe74d7f1b96625c4b60551f33eb6fa28992c8ccc71dff9b7c70b -rw-r--r--     root    wheel   6.2 kB /private/etc/postfix/master.cf.proto
056514aa4105c96e0aad6a144d76f63461db7157123d43fa7c4121297a6c9200 -rw-r--r--     root    wheel    190 B /private/etc/asl/com.apple.authd
05f4215652c68201fd6aee81fc4eeaee4d5c395f3f4a3a155b986cb06ca0f768 -rw-r--r--     root    wheel    216 B /private/etc/asl/com.apple.cdscheduler
3c4aaff1783756368c28022658ebb238d6f9f32beeb0d04d79962654e0a0ae26 -rw-r--r--     root    wheel   3.3 kB /private/etc/ssh/sshd_config
23198c58755cd991531259cd290f62ea99cd9596595001ab303a15306fd03ec1 -rw-r--r--     root    wheel    127 B /private/etc/pam.d/authorization_ctk
48edf5460c6ad64cc681209902d2cfef856f4b68400e34cac41ec6704f45b580 -rwxr-xr-x     root    wheel    687 B /private/etc/periodic/daily/430.status-rwho
c998ee1b26049571ed20dc89e7dd9d3e87e85846bdf0d9ff1aae9f760774bf5b -rw-r--r--     root    wheel   1.1 kB /private/etc/apache2/original/extra/httpd-info.conf
b822424c1eba4ae12efa0bad98c6288f9111d5da88f43a847c69e660dc3c8c80 -r--r--r--     root    wheel   6.2 kB /private/etc/openldap/schema/collective.schema
c90d596b58cb588b3ae77312f9fe8b0511ea8a842caf058d130138a32cca8419 -r--r--r--     root    wheel   2.1 kB /private/etc/openldap/schema/fmserver.schema
5475edebf371c8c4771d6951a51a80e4c40871a01355122cac4146966d6aa58c -rw-r--r--     root    wheel   4.5 kB /private/etc/apache2/extra/httpd-mpm.conf
61b95be8351545f888956f733db55f810e3b5f8b4b221ad219428b95c55bdbc9 -rw-r--r--     root    wheel   1.1 kB /private/etc/asl.conf
b9611702dbb3c2d02e060d82cff7a542f6ec6de29aabaa0b4c8482e5ed1f78d0 -rw-r--r--     root    wheel    113 B /private/etc/pam.d/authorization_aks
9a31f3b43190281ce1320ac62b3d7672c0bd5bb8bf607c82767994bfa815068e -rw-r--r--     root    wheel    153 B /private/etc/asl/com.apple.eventmonitor
cc58ac4627390ef04037b7b77ed0359b267a8e8ceb99bdc3aa156dae6367094a -rw-r--r--     root    wheel    607 B /private/etc/apache2/original/extra/httpd-userdir.conf
17294d602f2d28944e6517a6a8a432548351d1eaf468062b8da6d84bbf7c5440 -r--r--r--     root    wheel    133 B /private/etc/uucp/passwd
27b21d21df689f2f097f56b907d2a936acbeb943fc98bfeb56d2c62cba33c451 -rw-r--r--     root    wheel     13 B /private/etc/paths.d/40-XQuartz
1f07bc400e932a1f36c65634b9f5e7d7a6249c58195f903fe21d4bf83df43c5b -rw-r--r--     root    wheel   3.4 kB /private/etc/wfs/httpd_webdavsharing_template.conf
444c716ac2ccd9e1e3347858cb08a00d2ea38e8c12fdc5798380dc261e32e9ef -r--r--r--     root    wheel    265 B /private/etc/bashrc
fa115d33bdc964acfe0b0241c511c2bed643820f8c574e45f443a17a331cf138 -rw-r--r--     root    wheel    318 B /private/etc/pam.d/screensaver_ctk
eab8fa9f3d43e099731db74d17733fb46c5578206f4dbb0db204bc2cef68664a -rw-r--r--     root    wheel   7.6 kB /private/etc/passwd
99c7c05d6e8690b32ea58d6fcda64a090eaae782026551d2d9e347694c626ce7 -r--r--r--     root    wheel   7.8 kB /private/etc/openldap/schema/nis.schema
025f5e31cd7b2248a0a661d8d346452c31d98e280f3420c3f6017c74c829ae73 -rw-r--r--     root    wheel    745 B /private/etc/ssl/openssl.cnf
9d70873703af389018ccc7b57a503d2692ba1d6b71271bcf00473d40f5095486 -rw-r--r--     root    wheel   3.2 kB /private/etc/apache2/original/extra/proxy-html.conf
69c9044d7bdcdd195249b13b8893abf7c60092391975408468ac5e8969fcd79a -rw-r--r--     root      _lp   6.5 kB /private/etc/cups/cupsd.conf
d7c000b62ab236b5c5c4db8ad7edec232b2afe95d85c8e064a5c9f6d5308620f -rw-r--r--     root    wheel   1.6 kB /private/etc/postfix/TLS_LICENSE
ed9d05e8ec15f676263a184a7c30858f2d5cd0258da168d3b262b76567bc7bae -rw-r--r--     root    wheel   2.9 kB /private/etc/apache2/original/extra/httpd-default.conf
bb3d6775b7fc8042b2b68232384694ac3bee6d1100b87f9dcd0840ee935dd2b5 -rw-r--r--     root    wheel    12 kB /private/etc/postfix/canonical
96618e0c2ba27c318f77262c22a99f039ecf2e1d83754fcb1a0f208e961da2f7 -r--r--r--     root    wheel   1.5 kB /private/etc/openldap/schema/openldap.schema
cf6e6fe1497d5b3983529174674b8a09941d67244727157e208d37b24b247bc1 -rw-r--r--     root    wheel    166 B /private/etc/pam.d/authorization_la
aa464696f1c0282b1728b79e5da52c6f44d130b93c6e3011ea4e67407461c191 -rw-r--r--     root    wheel   3.6 kB /private/etc/racoon/racoon.conf
1dc9a5dec35592b043715e6b5a1796df15540ebfe97b6f25fb4960183655eec9 -rw-r--r--     root    wheel   9.3 kB /private/etc/zshrc_Apple_Terminal
e2dd2ce55d57c625d241b8ddbc834fbab3e9c2061955b094326201dfd083d051 -rw-r--r--     root    wheel    202 B /private/etc/asl/com.apple.clouddocs
eb33ba8357c7166620b5c33fc8436a0081ba093f7cbf60fef7ddb35b491a4012 -rw-r--r--     root      _lp    128 B /private/etc/cups/snmp.conf
d7cbf00c6fb63b14e2314cb5aff696e6d01e6911e0bcebf2c540ddb28b614340 -r--r--r--     root    wheel   6.8 kB /private/etc/openldap/schema/nis.ldif
91d53776cbd13b565b93dfae32ceb7236c09df3f4629329b521fe1b523460613 -r--r--r--     root    wheel   3.3 kB /private/etc/openldap/schema/dyngroup.ldif
4a054f138fbed4a755b351fb51dd83fe3005e07fc7d075c3880e10ec8950873a -r--r--r--     root    wheel   123 kB /private/etc/openldap/schema/microsoft.schema
8e920f9fb045a6dfe53fd18bb6450c5b3051bd88c4c7eac88b7c41deee02e6a8 -r--r--r--     root    wheel    246 B /private/etc/pam.d/sudo
9d5aa72f807091b481820d12e693093293ba33c73854909ad7b0fb192c2db193 -rw-r--r--     root    wheel    189 B /private/etc/shells
81bac019ddc3523e67726f6159c180bd128b9ef1872d5359fe40e3fa78690694 -rw-r--r--     root    wheel    387 B /private/etc/asl/com.apple.AddressBookLegacy
309c09ccf0f826e2e753472a01fa32d7f1f326879992e8e925ef3ced57a6252b -rw-r--r--     root    wheel     11 B /private/etc/nanorc
a27af5a5be37a725abe8587a803e601e243739c2ea4abfde9707199b66369deb -rw-r--r--     root    wheel   1.3 kB /private/etc/newsyslog.conf
810dbd036a97217460ec5f56e543621dd2a735bb809fca45327400e2afc272ad -rw-r--r--     root    wheel    27 kB /private/etc/postfix/main.cf.proto
8aa44a4856b41d4f1dd7799b975eb68472df1d6b8f8268a0cc6aaa9975f55349 -rw-r--r--     root    wheel    891 B /private/etc/rtadvd.conf
49422ce34f9e3b5134cecdb73f5f54fa34480fc424279321dab18240b4bf8cde -r--r--r--     root    wheel   2.4 kB /private/etc/openldap/schema/misc.schema
eff9ba3a711059ac519e1914477a28db07ce3ed8c70eb36479e0da39cd41fc4e -rw-r--r--     root    wheel    197 B /private/etc/pam.d/passwd
e523e826b0192c39b42d71597caa8b3e5e166d1e6af98528f046f1ebe6727925 -rw-r--r--     root    wheel    24 kB /private/etc/postfix/header_checks
f63a90bd20d0baea6f3b7f5c0679d02e58dc294d5a37bd0c44f2046609d74b4a -r--r--r--     root    wheel    16 kB /private/etc/snmp/snmpd.conf.default
c7e32a8ad7f390bc508c245dfd929cccf18cf222889ca7eed281619495b3dc5f -rw-r--r--     root    wheel   346 kB /private/etc/ssl/cert.pem
49fde98b0963f27c0630072414be0ee0205d71eba529bbaf86b65d1e1603eead -rw-r--r--     root    wheel   2.9 kB /private/etc/apache2/extra/httpd-autoindex.conf
f918b0dec7a783521bd7efbe2e5aef28e2d3250bec1cb524752bb31d18ddbe0b -rw-r--r--     root    wheel    149 B /private/etc/asl/com.apple.performance
b2dc9fa1938c981ce201f1458afb373d97caf860d9bfba0ded9c450a64f8e65d -rw-r--r--     root    wheel     27 B /private/etc/ntp.conf
9e8dffed375e348782c5bc8e15b6a33ea002c96588b7686bd230693dd86898eb -rw-r--r--     root    wheel    181 B /private/etc/pam.d/checkpw
8a8a65b24957cbf2c5376a2a7a4dccb3e02f8cc3cfb338caa58cb93345c6a23c -r--r--r--     root    wheel    203 B /private/etc/pam.d/cups
c74b98809cf175d83699a095bf9f20689dcc66daeedc7e48119026e88103fb09 -rw-r--r--     root    wheel     44 B /private/etc/postfix/custom_header_checks
891232253c3bb2789de7cb01b8d313e3c3ed6820434457634775867cc50c657b -rw-r--r--     root    wheel   5.4 kB /private/etc/postfix/makedefs.out
ba4bb2c9087c046186ef306d4bd5046694e7bc0bc715503ba210e6f96e417642 -rw-r--r--     root    wheel    13 kB /private/etc/apache2/original/extra/httpd-ssl.conf
4348468f1850b16e8ad3f7be8963bde559cfd8dd7aed8ffd655a40aaa551e073 -rw-r--r--     root    wheel    156 B /private/etc/asl/com.apple.MessageTracer
b2aac03248e8f229c703561f5bb059f9be491e5db9f447692398d775a9fb12a5 -rw-r--r--     root    wheel    195 B /private/etc/auto_master
bf41a1579c3d12a4b8466fad91794157fcca4b2c611fb178ddce232cd9a4e0e5 -r--r--r--     root    wheel   8.1 kB /private/etc/openldap/schema/corba.schema
c78f581bf6c453c6cf4e4ba241fe081d7de69bbfa42d41fc65a475827c8bd627 -rwxr-xr-x     root    wheel    695 B /private/etc/periodic/daily/130.clean-msgs
7e94a499c84675258a9734b150a28950fa22cbaad5f1eedfff507541d9f7d9ef -rw-r--r--     root    wheel    13 kB /private/etc/apache2/magic
66dfdc46b6b66f0830252f20e1c74aa865656223e30f95fbef6b05051fdc3cde -rw-r--r--     root    wheel   9.3 kB /private/etc/bashrc_Apple_Terminal
f19f881084f599fa261243918d922373eab14623e78d23c41fcc031aa21ca7b6 -rw-r--r--     root    wheel    941 B /private/etc/emond.d/emond.plist
b19baf7d26dad9163a2e87c5b9731943e8dad7243c81aacfacf6bdcdcae03c61 -rw-r--r--     root    wheel    200 B /private/etc/pam.d/chkpasswd
effcfce27485ef1ca9142df4fe810d518e720092b00dce0a9504e2ef378cc42c -rw-r--r--     root    wheel    27 kB /private/etc/postfix/main.cf
d73737159f9e3bedf75645dd7c2254331beea55567da92f3b974d4ba8194ff81 -rw-r--r--     root    wheel    13 kB /private/etc/postfix/virtual
1b3f45ae268583561d2e9baa82474dd0035d974cf687991a20f885f107dd943d -r--r--r--     root    wheel   2.0 kB /private/etc/openldap/schema/collective.ldif
f99a4803d9f2f8c48c33866487067fbd3a0d02080e10749e70445813b4d60954 -rwxr-xr-x     root    wheel   1.6 kB /private/etc/periodic/daily/110.clean-tmps
7ac5924452faaf32bbfbd41f816947fccc3ff2fc17554be7bc5fff99d71ebe2e -rw-r--r--     root    wheel   6.9 kB /private/etc/postfix/relocated
7cb50dc544e9050e398ebc0844081e928ca52c09a0d304228489962a93b63692 -rw-r--r--     root    wheel    365 B /private/etc/hosts
fde802d853379ae3724693f05be7f273b92429ab500a7806683e7a21975f743e -r--r--r--     root    wheel   3.0 kB /private/etc/openldap/schema/java.ldif
dbec41507d3e3c390b0418d96c9ea5f61d3e9ac969bd025b6d23b78af25adaeb -rw-r--r--     root    wheel     18 B /private/etc/paths.d/go
2012882e055c2a2502cd7d3dd373c1804f0fce782225e90aca491abad720b53a -rw-r--r--     root    wheel   1.5 kB /private/etc/apache2/original/extra/httpd-vhosts.conf
dd89ec314b4e26aa2481a315c7e71404ccff929ead511269e934406be0e61143 -rwxr-xr-x     root    wheel    888 B /private/etc/periodic/monthly/199.rotate-fax
3efeec1e339725bfadd53138dde7822ebc57ba73275a1c0fc05e0d7d8abafc4e -rw-r--r--     root    wheel    624 B /private/etc/wfs/httpd_webdavsharing_proxy.conf.inactive
ede47b49ba30fbd0e02f10006fa967d2887f7e4c676e6b657ae0a20285ef1d4c -rw-r--r--     root    wheel   2.2 kB /private/etc/apache2/extra/httpd-multilang-errordoc.conf
ebbeeaa6c956e56727c1391e4443a7da9da70e5e9201fcf69194e9ce397f9a2d -rw-r--r--     root    wheel    339 B /private/etc/asl/com.apple.coreduetd
2a0ba79339b7112dbd24b5fdd4b54f32573971a0ad9906240bbeb6bad3d382bc -rw-r--r--     root    wheel   5.3 kB /private/etc/rc.netboot
6fb5b260918922ca5ca4dfb296967d8edb9c12f2c043f26b64590758441d682d -rw-r--r--     root    wheel   1.0 kB /private/etc/pf.conf
011fd8d7180df2a60de23826192aab50889f73488d01d6c35d186fcb7f64640d -rw-r--r--     root    wheel    61 kB /private/etc/apache2/mime.types
7c1f46f8dca762135990bdf0e3aa0395d4867858e35a3f2583549fa6cd5b082a -rw-r--r--     root    wheel    189 B /private/etc/csh.cshrc
cdfc5a48233b2f44bc18da0cf5e26df47e9424820793d53886aa175dfbca7896 -rw-r--r--     root    wheel     45 B /private/etc/paths
64d9fef3a2825ba4d770b38b5ccd12ad4df477535f345fa8649d65fea940fcbf -rw-r--r--     root    wheel    512 B /private/etc/pam.d/login
38b6d46f6924364dc3013ffad83a12b7bc10bf3a878b5ae0f53ef117851900b8 -rw-r--r--     root    wheel   1.7 kB /private/etc/apache2/extra/httpd-dav.conf
ba4bb2c9087c046186ef306d4bd5046694e7bc0bc715503ba210e6f96e417642 -rw-r--r--     root    wheel    13 kB /private/etc/apache2/extra/httpd-ssl.conf
ede47b49ba30fbd0e02f10006fa967d2887f7e4c676e6b657ae0a20285ef1d4c -rw-r--r--     root    wheel   2.2 kB /private/etc/apache2/original/extra/httpd-multilang-errordoc.conf
5475edebf371c8c4771d6951a51a80e4c40871a01355122cac4146966d6aa58c -rw-r--r--     root    wheel   4.5 kB /private/etc/apache2/original/extra/httpd-mpm.conf
e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855 -rw-r--r--     root    wheel      0 B /private/etc/hosts.equiv
e05e1b6f966477644849720be93b0707029323b732b4105b63475443fa740aa2 -rw-r--r--     root    wheel    376 B /private/etc/asl/com.apple.networking.boringssl
39bc7222686b37aea251957d5b0658600711bc91815a792459395188ace48e33 -rw-r--r--     root    wheel     23 B /private/etc/ntp_opendirectory.conf
ad2902787f6a2cc2728320d9bf5387371d88a8226c32bac08df9f6d7886bfee4 -r--r--r--     root    wheel    20 kB /private/etc/openldap/schema/ppolicy.schema
69a61ae495580e0e144792c9a809bffe707a6a13f292095f43a7a88c92b11ef0 -rwxr-xr-x     root    wheel   1.2 kB /private/etc/periodic/daily/310.accounting
49fde98b0963f27c0630072414be0ee0205d71eba529bbaf86b65d1e1603eead -rw-r--r--     root    wheel   2.9 kB /private/etc/apache2/original/extra/httpd-autoindex.conf
f1e89e3a029a3b72a30f82fc7346c13030b4de16b77ecc4c58f4a4de6f99c242 -rw-r--r--     root    wheel     82 B /private/etc/com.apple.screensharing.agent.launchd
a18ff587cf7d16939acf5a969da49a393ce503b1c4b83ad42e4b902991329b4f -r--r--r--     root    wheel    48 kB /private/etc/openldap/schema/apple.schema
6293f4cc430a3d8648fa60f26546d16e55f84d05b71f996ca930a95aa3ce312c -r--r--r--     root    wheel   3.3 kB /private/etc/openldap/schema/dyngroup.schema
c0dbae0bb16ea7cbc26c0d49286946ef8713335564f5c0a2f4ab7339b8f948f2 -r--r--r--     root    wheel   2.1 kB /private/etc/openldap/schema/misc.ldif
fc1166d771ec0092cb6280cadf54e9df3fa4eff6be0132f9064f87a7b0b6416a -r--r--r--     root    wheel   3.3 kB /private/etc/openldap/schema/openldap.ldif
b232f6b78ffdcfdf34697f1432b6cd9bcbad27da384d493d9285b02f398c13ea -rw-r--r--     root    wheel   1.7 kB /private/etc/rpc
9a40f8365adb49f0a63930316c475251631150f0f58bfad692a633c8e7486fc9 -rw-r--r--     root    wheel     96 B /private/etc/syslog.conf
b99ca2f2de327fd9a0374e1eacd3ccbc0f6fce17e0372c42d370ce4852bb75f4 -rw-r--r--     root    wheel    22 kB /private/etc/apache2/original/httpd.conf
b45fd6ac093bcb4aec44b366d14300cdb1a65f65d7a630630af0f89c9c937894 -rw-r--r--     root    wheel    265 B /private/etc/openldap/ldap.conf
36ff03121c003e884d67372d060c83886d73429fc62df37c831f604ecb59cb56 -r--r--r--     root    wheel    717 B /private/etc/openldap/schema/apple_auxillary.schema
b01b61f6b1486186b84ac009ccfff409fc43dd66e1b780a60de94090e8459dc2 -rw-r--r--     root    wheel    154 B /private/etc/newsyslog.d/wifi.conf
334c18bfe6d007a0bcb6f1e7b3619b9592acea6ce60775d6f8d3d56f7ca8d50b -r--r--r--     root    wheel    72 kB /private/etc/php.ini.default
1b3a1b45deb322db6df7d39dd52f67d1d49cb89e77388c41dccf640dcd83cd37 -rw-r--r--     root    wheel    10 kB /private/etc/postfix/aliases
8923cf7346a5536cc5fadf73e1f92681cf31e73d06548f8abd1e7854f5694290 -rw-r--r--     root    wheel    351 B /private/etc/notify.conf
a377ed0d15192ea50c9de076583030fe246bec85bd37a9fe1f3cd792e84231ab -r--r--r--     root    wheel    20 kB /private/etc/openldap/schema/pmi.schema
fbbd9eac3bb65ba340cda731e596fc52e76c49339e7c7dd6653f06d17edb36ad -r--r--r--     root    wheel    527 B /private/etc/pam.d/sshd
aab9982ea2af8b86b1fde1e8c199de6f12f45db1a831c1804c33ee65e53d6d25 -rw-r--r--     root    wheel    264 B /private/etc/pam.d/authorization
d0f8d2287d44031b79d9798dc6c68ea7d789ffc129ec2056b3630c938cc54068 -rw-r--r--     root    wheel   3.3 kB /private/etc/wfs/httpd_webdavsharing.conf
405101681e712d2727fd6131a84b0eb1b89ed3b72ad3722916368b5ea3cdf6f6 -rw-r--r--     root    wheel    943 B /private/etc/wfs/wfs.plist
be95a05eafeae5a7450eef61d6477d0b1080f314c3338b5f81c5d5fc65681fdd -r--r--r--     root    wheel   1.3 kB /private/etc/irbrc
f33710cbbb38b977b7ed1a10038f6f1911d0ce8dd82f65e1a54db13fbecc429f -r--r--r--     root    wheel    12 kB /private/etc/openldap/schema/cosine.ldif
422bfa0619b344ec6248e589333df261c4901feca2ce816fd23ef99b5229b7a0 -r--r--r--     root    wheel   5.7 kB /private/etc/openldap/schema/samba.schema
950f16a5623699af1fa0e03f9f286374229bbc84d7e887efa3984a1902e48d4b -rw-r--r--     root    wheel    175 B /private/etc/newsyslog.d/com.apple.slapconfig.conf
994263a50efad8a1b416754ea4ed463d5e1a7524ed2b3105b780dfe480dbfe94 -r--r--r--     root    wheel    145 B /private/etc/php-NOTICE-PLANNED-REMOVAL.txt
97a0a5a23df5f84d6c4396e5e1c4c6b10c690300ee392cfbf633002e300ce2cb -rw-r--r--     root    wheel    10 kB /private/etc/postfix/generic
b86accf42ae92d4e00b67c50010b7f278bc76c50755bdc9638e2096cbd596890 -rw-r--r--     root    wheel   6.4 kB /private/etc/protocols
24240ece7cf8aa30d242f178d7defd3a47d631bbbcf897d2f170e28b863564fa -rw-r--r--     root    wheel    178 B /private/etc/asl/com.apple.mail
71be406f45c35429621a43970b0a10debcfd319f0e0ecb1f9b5c5c0ce4cfc3bd -rw-r--r--     root    wheel    121 B /private/etc/csh.login
2e5298d1432df0d5f3b741a1e052cfdb73cc4d800db34651f083f36b3c64dcb8 -r--r--r--     root    wheel    10 kB /private/etc/openldap/schema/duaconf.schema
36816c4a31b3fbbc86312073f65ba5b514823f89864ad2f3ede7b6b456a8ed4d -r--r--r--     root    wheel    27 kB /private/etc/security/audit_event
d4a58e12a2e3a9aa4ca72cbe4c63b786b20d6a212a87759f6c93db594be3e3f0 -r-xr-xr-x     root    wheel   1.3 kB /private/etc/security/audit_warn
a744a313d0b95f6f15768b78d15cf3168ffd18abde4e4801a55b0fbb1c37ae86 -rw-r--r--     root    wheel    233 B /private/etc/asl/com.apple.install
a1b83027e0b929e389bde2984078b7debf7f885051d9f9be18545aa07bebac21 -rw-r--r--     root    wheel    409 B /private/etc/asl/com.apple.mkb.internal
533ad90f9c16d3d000a929513d72050bdef7e75bc8ea1790694227c20ab97f2e -rw-r--r--     root    wheel    176 B /private/etc/newsyslog.d/com.apple.xscertd.conf
b17912cf8ac845d1098829a3f876bdc7597bc8360bb8f260e49d1e3ca26d5029 -rw-r--r--     root    wheel   1.4 kB /private/etc/apache2/extra/httpd-manual.conf
28048538f6a15661bdefcf706f39d0003fb9107bdc5206df295db67b66b8345a -rw-r--r--     root    wheel    365 B /private/etc/pam.d/screensaver_la
16c13e23b179e6b325102eb285e78b7678ee64231f9bbb2ff6bd5311f38f89ae -rw-r--r--     root    wheel   7.4 kB /private/etc/postfix/master.cf
61b42416ea3c5c9d5850364a23ec3aa5b6ddc6e2055b0402d6435b8fed46f3c5 -r--r--r--     root    wheel    652 B /private/etc/security/audit_class
e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855 -rw-r--r--     root    wheel      0 B /private/etc/xtab
fb5827cb4712b7e7932d438067ec4852c8955a9ff0f55e282473684623ebdfa1 -r--r--r--     root    wheel   3.1 kB /private/etc/zshrc
1aac36c9a80ecab24b5d4346ac5c605a9614f89590e6d0957b82f781a8d40a49 -rwxr-xr-x     root    wheel   1.1 kB /private/etc/periodic/daily/140.clean-rwho
ca2ae7cf01205f3b961c70c607a31c5ed7cc4434dc94d5a5152e18844c5ecffe -rwxr-xr-x     root    wheel    378 B /private/etc/periodic/daily/199.clean-fax
e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855 -rw-r--r--     root    wheel      0 B /private/etc/rmtab
e02803e7d3435412c397478205b16c95486fde05ecde74959f9799c49c7ce009 -rw-r--r--     root    wheel    149 B /private/etc/auto_home
bd0ec71eab6515a902703163e65839498429e7d31860c9584b30b635f7423367 -r--r--r--     root    wheel    14 kB /private/etc/openldap/schema/java.schema
11eddeb0e0d55ea1bf43c180f04a53533d5cc71d2a69fbbcf7ca0488c8450d79 -rwxr-xr-x     root    wheel     23 B /private/etc/paths.d/100-rvictl
20909c75c14c9f5360a48c889d06a0d6cfbfa28080348940fc077761744f2aa5 -rw-r--r--     root    wheel    822 B /private/etc/emond.d/rules/SampleRules.plist
11ae0d388aed5d193821d33d060da5ed9119d19689ce6c220b407a4c5da3553f -rwxr-xr-x     root    wheel   1.0 kB /private/etc/periodic/monthly/200.accounting
8c6e2a2647ee854f469a3bb798e02ba5a8b1812cab229ff129f073e7a80c1202 -rw-r--r--     root    wheel   678 kB /private/etc/services
063a5972c7b72eda797684b2c034f37a000aaf7bd3b91b01f7cdd3ff74f170e7 -rw-r--r--     root    wheel   5.7 kB /private/etc/gettytab
b45fd6ac093bcb4aec44b366d14300cdb1a65f65d7a630630af0f89c9c937894 -rw-r--r--     root    wheel    265 B /private/etc/openldap/ldap.conf.default
bbe18692eb80dc6e27643a5392b358be548edaec210206eeb1a67c99892fc33e -rw-r--r--     root    wheel     39 B /private/etc/csh.logout
7de66c7adb93cb1e0da88874d27668c1d78488a9578268e8234460d9083b2e01 -rw-r--r--     root      _lp   6.5 kB /private/etc/cups/cupsd.conf.default
ee479a7a0dd839c4a08e73d5a6fcffbe750bd47b82cf7c633ed20c5e63b8ed03 -rw-r--r--     root    wheel   5.0 kB /private/etc/defaults/periodic.conf
e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855 -rw-r--r--     root    wheel      0 B /private/etc/kern_loader.conf
7bf0e7399139a3a478b9f447ceb042dee1137261b39dace27db18a93242ebdc2 -r--r--r--     root    wheel   1.8 kB /private/etc/openldap/schema/corba.ldif
c536e94effbd1e5890f6fb084590a091afc8369a65a9a8b3d71edbfde290da45 -r--r--r--     root    wheel    20 kB /private/etc/openldap/schema/core.schema
aea837b88e320abcd476f5839952d5e1a612c0e4a225cb9205d20071e6c37745 -rw-r--r--     root    wheel    106 B /private/etc/mail.rc
b14dbb949b10a0635b7303ff96d86406d8d6c64d414a1e0f91cdf8ba2a62c74a -r--r--r--     root    wheel    191 B /private/etc/pam.d/other
9d6f5bffb6fda39e61e1dd90109a42b7a1abf8a5995f3e81e87b7bf4f312b309 -rw-r--r--     root    wheel    119 B /private/etc/ftpusers
0cb5352ac33727fd7979e454f6ac1a56b7795a8ab5a25d7cc955133fb47cf9c4 -rwxr-xr-x     root    wheel    522 B /private/etc/periodic/daily/400.status-disks
16c13e23b179e6b325102eb285e78b7678ee64231f9bbb2ff6bd5311f38f89ae -rw-r--r--     root    wheel   7.4 kB /private/etc/postfix/master.cf.default
d9013690a0652573167ef63917f6ed2ad63a5e15b1f82d40010c75f33ec85da1 -r--r--r--     root    wheel    205 B /private/etc/apache2/other/mpm.conf
14ecbb4a93f277771924c3a9aa870ecd67a742fd6164572af329feef40061325 -rw-r--r--     root    wheel    318 B /private/etc/asl/com.apple.login.guest
b22a5ff409482104f804f04b0035f2fd1f6801974645f79c87e9025729a50286 -rw-r--r--     root      _lp   3.1 kB /private/etc/cups/cups-files.conf.default
18dc169426b3130e43cd1a5919f95dd58ccee6d49a9182a4b2ecdf5c5bb563bc -rw-r--r--     root    wheel   577 kB /private/etc/ssh/moduli
c64beac4afa42e602286728c1e0158fc90195768e97d5f6bc0d917208faeb3b3 -r--r--r--     root    wheel    21 kB /private/etc/openldap/schema/core.ldif
8c716d8131c6f1ae290b49beed057f06bd5cd18b5227cfe3b50556b35e21ce3b -rw-r--r--     root    wheel   5.3 kB /private/etc/php-fpm.conf.default
a3fe9f414586c0d3cacbe3b6920a09d8718e503bca22e23fef882203bf765065 -r--r--r--     root    wheel    189 B /private/etc/profile
f63a90bd20d0baea6f3b7f5c0679d02e58dc294d5a37bd0c44f2046609d74b4a -rw-r--r--     root    wheel    16 kB /private/etc/snmp/snmpd.conf
6e72e6f9366198e19491ccc785a0cdfb5a05510609c03fcf388b02aac43fec0b -rw-r--r--     root    wheel   1.0 kB /private/etc/ssl/x509v3.cnf
b86ff58053e9e930a0324f7fb5e0458213567feca9e97de92da20bff82f17e06 -r--r--r--     root    wheel   2.4 kB /private/etc/uucp/sys
146f0e625f4a1b8b11fabab45b66d989e85d0408348403678074b3db881e3587 -rw-r--r--     root    wheel    165 B /private/etc/newsyslog.d/com.apple.slapd.conf
726813f6f77f7b566a7c004d79cac51dfdc3b28ff3265179e7fbb032b706ba6d -r--r--r--     root    wheel   4.0 kB /private/etc/openldap/schema/ppolicy.ldif
8475720c1288108fa6c55c028a26e7aa12155009095dd8c04a547969b65a95b3 -rwxr-xr-x     root    wheel    548 B /private/etc/periodic/daily/420.status-network
abb7d93ea2ef352db65c05101a112264334e7e531522f576ee397371e13fe5d8 -rw-r--r--     root    wheel    183 B /private/etc/pam.d/authorization_lacont
4ae766c32277f60bba1b505e3837ccc29587c0cb4fbf65d20b17baa9463b0fb6 -rw-r--r--     root    wheel    13 kB /private/etc/postfix/transport
a9419086fc2b70f69130c3ee9f8761b0a12b0c7da47d3b779b04ab3827081cf0 -rw-r--r--     root    wheel   5.1 kB /private/etc/apache2/extra/httpd-languages.conf
e8c63560d75c0c459666f2d8c69bd23b83151080d571148b9a30667f680d6f3c -rw-r--r--     root    wheel   3.2 kB /private/etc/group
7ca5887133958e0ac30c92ecec70fe753977cfcc0137cfa93311aeed8fa38e24 -rw-r--r--     root    wheel   117 kB /private/etc/openldap/AppleOpenLDAP.plist
4277bb97ba7b51577a0d38151d3e08b40bdf946753f5b5bdeb814d6ff57a8a5e -rw-r--r--     root    wheel    515 B /private/etc/afpovertcp.cfg
f047c7a23d830f221f142861d2ae10eb4a27d74beff3fcaf599b4c441ae44f5e -r--r--r--     root    wheel    13 kB /private/etc/openldap/schema/microsoft.std.schema
94139c5762d820ac8a6d567ca5a5e9753af95e1c8560f23e65bc169be11f4042 -rwxr-xr-x     root    wheel    712 B /private/etc/periodic/daily/999.local
69f2f70c4d02fe6a0d4ecc99b8cfb676090aae0435c74eb45b2d79c72cb39a09 -rwxr-xr-x     root    wheel    606 B /private/etc/periodic/monthly/999.local
b99ca2f2de327fd9a0374e1eacd3ccbc0f6fce17e0372c42d370ce4852bb75f4 -rw-r--r--     root    wheel    22 kB /private/etc/apache2/httpd.conf
db16889d677588787af70881d7e0af827e847a5660e9a78c955da53d8edd614b -rw-r--r--     root    wheel    105 B /private/etc/asl/com.apple.iokit.power
bea9ba8f43b879adff12ba844aad204ae6be074b356a4ff917305725b4341eb5 -r--r--r--     root    wheel    154 B /private/etc/newsyslog.d/files.conf
0d5d7c3f51196286c17c894bf77ab0ba057256aa04a455a137c3860fbb46d98b -r--r--r--     root    wheel   3.5 kB /private/etc/openldap/schema/README
6c2621756bae333c3af6429407f949f6220bd75df956606ed911bf6b5c8348fd -rw-r--r--     root    wheel    140 B /private/etc/pam.d/smbd
38b19f16f2cfe9cb398e59544cbbeeb4998718dbf231251a41eb31893aed223b -rw-r--r--     root    wheel   3.5 kB /private/etc/postfix/bounce.cf.default
6dcf0856acd475d75f7d4f2cb5e6a743b2df97ddd394b78e07ae172ab7f04363 -rw-r--r--     root    wheel    20 kB /private/etc/postfix/postfix-files
05e4653d532915fca72e4352ade5040c3361340920eee047ac4dd313bc9d8e19 -rw-r--r--     root    wheel   1.6 kB /private/etc/ssh/ssh_config
49dede3f9e65fd6ea036bc1598e07f1f73a3ad9c70c4744de954d6d0a8fdbdb5 -r--r--r--     root    wheel    194 B /private/etc/apache2/other/php7.conf
a5ff0b83be70bdb0107e8e6f4d2bc8e3608e7e9b15e15145b5f24ca4c559f504 -rw-r--r--     root    wheel   1.9 kB /private/etc/autofs.conf
1c350ccbbf5e4e09923f5bd1d93fd1578e0a5b6b7d4b85c631d09e1a1a71dbd3 -r--r--r--     root    wheel   6.3 kB /private/etc/openldap/schema/inetorgperson.schema
3ada6707f5fd265c70176f24ff988acb15983df6b2b99a5b3cdb833c8c38ea9f -r--r--r--     root    wheel    74 kB /private/etc/openldap/schema/cosine.schema
c3a8ab17dd75c874d9da896e729c516273900f8e5b80538daf60e8e95ff86660 -rw-r--r--     root    wheel    22 kB /private/etc/postfix/access
effcfce27485ef1ca9142df4fe810d518e720092b00dce0a9504e2ef378cc42c -rw-r--r--     root    wheel    27 kB /private/etc/postfix/main.cf.default
768ff09154f6aacda857cb175ef29cf9d23ef9c38c69efdbf20354dbfd7875b1 -rw-r--r--     root    wheel   1.6 kB /private/etc/rc.common
0235d3c1b6cf21e7043fbc98e239ee4bc648048aafaf6be1a94a576300584ef2 -r--r--r--     root    wheel    255 B /private/etc/zprofile
a9419086fc2b70f69130c3ee9f8761b0a12b0c7da47d3b779b04ab3827081cf0 -rw-r--r--     root    wheel   5.1 kB /private/etc/apache2/original/extra/httpd-languages.conf
7c982d301cf583c578abb470f5f3782d1d4451e43f5b90c6555ae75be6060d1a -rw-r--r--     root    wheel     53 B /private/etc/networks
d8b2b88b7cdec55c5150ced01d4e0a90b275bb11483086ea74cfcd6687309bae -r--r--r--     root    wheel   177 kB /private/etc/openldap/schema/microsoft.ext.schema
13e0a0a4991f31f4864096846b379a1d96808c2f0a735b6661aae29481f4bb94 -rw-r--r--     root    wheel    356 B /private/etc/pam.d/su
0fd7f2c4f02e68615f137ed090cbba2d1facb40da6bf269e1e326ed6a10aa618 -rw-r--r--     root    wheel    329 B /private/etc/pf.anchors/com.apple
847e127803905f596f8c2553ddab8e2d0bca21b4c4ebc79e4be19dcb554df9cb -rw-r--r--     root    wheel   1.3 kB /private/etc/bootpd.plist
e93775ee26b46f1bfc6b5eab5eab05cee15a1718e87a4a01cfbd474b5409d872 -rw-r--r--     root    wheel    621 B /private/etc/locate.rc
0c4f41f80e397939b4a9ce2137a1d725efb4d373e0587c8551b9f1ac12ed0a56 -rw-r--r--     root    wheel    312 B /private/etc/pam.d/screensaver_aks
c9acb4b8a3e8fd249e672516e37a88d37a9bc8f224b0ab29e76d302c4179de04 -rw-r--r--     root    wheel    28 kB /private/etc/pf.os
38b6d46f6924364dc3013ffad83a12b7bc10bf3a878b5ae0f53ef117851900b8 -rw-r--r--     root    wheel   1.7 kB /private/etc/apache2/original/extra/httpd-dav.conf
e3b0c44298fc1c149afbf4c8996fb92427ae41e4649b934ca495991b7852b855 -rw-r--r--     root    wheel      0 B /private/etc/find.codes
dbeff46b11216fc8b39dd3160f5085309c031044afdc77f394c94baa558abb60 -rw-r--r--     root    wheel     19 B /private/etc/manpaths.d/40-XQuartz
c998ee1b26049571ed20dc89e7dd9d3e87e85846bdf0d9ff1aae9f760774bf5b -rw-r--r--     root    wheel   1.1 kB /private/etc/apache2/extra/httpd-info.conf
b22a5ff409482104f804f04b0035f2fd1f6801974645f79c87e9025729a50286 -rw-r--r--     root      _lp   3.1 kB /private/etc/cups/cups-files.conf
411408289c874dfe0cb497c7d09e0e69601183ad7c9cbedcb9eae7543ff849c4 -r--r--r--     root    wheel   4.8 kB /private/etc/openldap/schema/duaconf.ldif
3c4f529ed0ba941121c3bb29d6e654299d9d9c77a98c2570465f15b0cce05aef -rw-r--r--     root    wheel    408 B /private/etc/pam.d/screensaver
081c0787da77e326dcf46a6d955cc807c42ad2362e99876c1c71257b38ff0c84 -rw-r--r--     root    wheel   1.3 kB /private/etc/ttys
2012882e055c2a2502cd7d3dd373c1804f0fce782225e90aca491abad720b53a -rw-r--r--     root    wheel   1.5 kB /private/etc/apache2/extra/httpd-vhosts.conf
43b85836499d3227d242c8ed7a9f33ee61a0b6be1df7bc41f962eff46b547ef1 -rw-r--r--     root    wheel   1.4 kB /private/etc/asl/com.apple.contacts.ContactsAutocomplete
41cdd0a28b1e13f3a475fafd45dec6d335cddecd6d2872a71450d5ab3336ee67 -rw-r--r--     root    wheel   4.6 kB /private/etc/man.conf
933a32202a6ca9d47c1a0af25f8577369b0134ce749002de1228f2b23a909142 -rw-r--r--     root    wheel     43 B /private/etc/nfs.conf
9b5ee3e68d2668a06a26bc29488c891a0182b4f2858f8bab97835d4238c8e892 -r--r--r--     root    wheel   3.5 kB /private/etc/openldap/schema/inetorgperson.ldif
6191e98d0228c084ec94f80af3639912b53c316db2cbf29a2123eab64491f709 -r--r--r--     root    wheel   4.1 kB /private/etc/openldap/schema/krb5-kdc.schema
7ba16d87de833e0b81898b544f981cd8b7dedcb8e9ad285bd954af560e089816 -rwxr-xr-x     root    wheel    620 B /private/etc/periodic/weekly/999.local
ed9d05e8ec15f676263a184a7c30858f2d5cd0258da168d3b262b76567bc7bae -rw-r--r--     root    wheel   2.9 kB /private/etc/apache2/extra/httpd-default.conf
b17912cf8ac845d1098829a3f876bdc7597bc8360bb8f260e49d1e3ca26d5029 -rw-r--r--     root    wheel   1.4 kB /private/etc/apache2/original/extra/httpd-manual.conf
eb33ba8357c7166620b5c33fc8436a0081ba093f7cbf60fef7ddb35b491a4012 -rw-r--r--     root      _lp    128 B /private/etc/cups/snmp.conf.default
9d70873703af389018ccc7b57a503d2692ba1d6b71271bcf00473d40f5095486 -rw-r--r--     root    wheel   3.2 kB /private/etc/apache2/extra/proxy-html.conf
b5847002ceeb4b141a882ba230eb84c186e2d59c74fbb718cc323c6b157ebde8 -r--r--r--     root    wheel   8.5 kB /private/etc/openldap/schema/netinfo.schema
cc58ac4627390ef04037b7b77ed0359b267a8e8ceb99bdc3aa156dae6367094a -rw-r--r--     root    wheel    607 B /private/etc/apache2/extra/httpd-userdir.conf
7ed4a5bae35e87e8815cb79dd3be70ac34a3056cb91216a22224a3c99b4c9720 -rw-r--r--     root    wheel    350 B /private/etc/asl/com.apple.mkb
125333636796ce03bacf4b079a93b90d3d458a81159c9593339183be5bf51080 -r--r--r--     root    wheel   6.9 kB /private/etc/openldap/schema/pmi.ldif
8a8b640738d46484ecc24c689f70702c5ca35dcd4868f7f413bd8727cd474f10 -rw-r--r--     root    wheel     36 B /private/etc/manpaths

Or list files within a specific subdirectory:

$ plakar ls 9:/private/etc/uucp
b86ff58053e9e930a0324f7fb5e0458213567feca9e97de92da20bff82f17e06 -r--r--r--     root    wheel   2.4 kB /private/etc/uucp/sys
17294d602f2d28944e6517a6a8a432548351d1eaf468062b8da6d84bbf7c5440 -r--r--r--     root    wheel    133 B /private/etc/uucp/passwd
863f779b43680f81799688e91c18a164047a1a8e9dfff650881e50ba35530ed1 -r--r--r--     root    wheel    141 B /private/etc/uucp/port

These listings rely on the snapshot index and do not fetch chunks from the repository, however it is possible to actually look at the file content with the cat subcommand:

$ plakar cat 9:/etc/uucp/passwd
#
# The passwd configuration file
#

#
# Specify a login name and password that a system can use when logging in.
#

uucp_tst sekret

Now let’s make a change to that file and push it again:

$ sudo sed -i '' -e 's/sekret/notsosecret/' /etc/uucp/passwd

$ plakar push /private/etc
open /private/etc/krb5.keytab: permission denied
open /private/etc/aliases.db: permission denied
open /private/etc/racoon/psk.txt: permission denied
open /private/etc/security/audit_user: permission denied
open /private/etc/security/audit_control: permission denied
open /private/etc/sudoers: permission denied
open /private/etc/sudo_lecture: permission denied
open /private/etc/master.passwd: permission denied
open /private/etc/openldap/slapd.conf.default: permission denied
open /private/etc/openldap/DB_CONFIG.example: permission denied
b41802cb-9424-47eb-8186-2847678a8646: OK

From there, it is possible to perform an inode diff:

$ plakar diff 9 b
-  drwxr-xr-x     root    wheel    160 B 2020-01-01 08:00:00 +0000 UTC /private/etc/uucp
+  drwxr-xr-x     root    wheel    160 B 2021-03-27 22:38:17.685871971 +0000 UTC /private/etc/uucp
-  -r--r--r--     root    wheel    133 B 2020-01-01 08:00:00 +0000 UTC /private/etc/uucp/passwd
+  -r--r--r--     root    wheel    138 B 2021-03-27 22:38:17.685791098 +0000 UTC /private/etc/uucp/passwd

This shows that the /private/etc/uucp directory has had its date change, and that /private/etc/uccp/passwd has had its date and size change, and from there it is possible to request a diff of the file with the diff subcommand:

$ plakar diff 9 b /private/etc/uucp/passwd
--- 98b6658b-a975-47c4-a38f-f958d8d7359f:/private/etc/uucp/passwd
+++ b41802cb-9424-47eb-8186-2847678a8646:/private/etc/uucp/passwd
@@ -6,5 +6,5 @@
 # Specify a login name and password that a system can use when logging in.
 #

-uucp_tst sekret
+uucp_tst notsosecret

The snapshots are not incremental so it is possible to generate diffs between any of them.

Removing old snapshots

Even though snapshots of similar content do not consume much space, there’s no use in keeping a lot of old snapshots hanging around. Snapshots can be removed from the repository with the rm subcommand:

$ plakar ls
98b6658b-a975-47c4-a38f-f958d8d7359f [2021-03-27T22:29:09Z] (size: 3.0 MB, files: 230, dirs: 39)
b41802cb-9424-47eb-8186-2847678a8646 [2021-03-27T22:38:22Z] (size: 3.0 MB, files: 230, dirs: 39)

$ du -sh ~/.plakar
2.2M    /Users/gilles/.plakar

$ plakar rm 9
98b6658b-a975-47c4-a38f-f958d8d7359f: OK

$ du -sh ~/.plakar
2.1M    /Users/gilles/.plakar

$ plakar rm b
b41802cb-9424-47eb-8186-2847678a8646: OK

$ du -sh ~/.plakar
  0B    /Users/gilles/.plakar

The repository keeps chunks as long as they are referenced by at least one snapshot, but removes them when they become orphans which is why the repository becomes empty after the last snapshot is removed.

Namespaces

Sometimes I want to make sure that my backups are fully disjoint one from another, not sharing their snapshots and deduplication. The plakar repository supports namespaces so that I can keep related snapshots together and apart from others.

For example, I have backups for poolp.org and for hypno.cat and I want to manage the snapshots separately:

$ plakar -namespace poolp.org push data
351348b3-8dc3-4caa-b0be-334c43f4fd13: OK

$ plakar -namespace hypno.cat push data
1fa2dac2-8096-483a-a2d3-2a78ce3706ce: OK

$ plakar -namespace poolp.org ls
351348b3-8dc3-4caa-b0be-334c43f4fd13 [2021-03-27T22:49:58Z] (size: 896 kB, files: 79, dirs: 4)

$ plakar -namespace hypno.cat ls
1fa2dac2-8096-483a-a2d3-2a78ce3706ce [2021-03-27T22:50:40Z] (size: 896 kB, files: 79, dirs: 4)
$

Stores

In addition, I may want to provide an alternate path to the repository because ~/.plakar is not ideal, plakar supports providing alternate repository path with the -store option:

$ plakar -store /var/backups/gilles push data
f6cc2508-ea59-4552-aa4b-27900f0a9781: OK

$ plakar -store /var/backups/gilles ls
f6cc2508-ea59-4552-aa4b-27900f0a9781 [2021-03-27T22:52:47Z] (size: 896 kB, files: 79, dirs: 4)

But this doesn’t stop here …

plakar server

So far I only showed plakar working on a local repository, it however supports a network mode.

It is possible to start a plakar server on a machine with:

$ plakar server 192.168.0.1:2222
$

and on another machine, point the repository to that server:

$ plakar -store plakar://192.168.0.1:2222 push /bin
3ac8f3ff-e723-46c3-9ae7-4b11bb27f3b2: OK
$

The plakar server can use -store itself, so it is possible to configure it to store at at particular location:

$ plakar -store /var/backups server 192.168.0.1:2222
$

and because I made a monster, it is possible that this location is a different plakar server, effectively turning a plakar instance into a proxy:

box1$ plakar server 192.168.0.1:2222
box1$

box2$ plakar -store plakar://192.168.0.1:2222 server 192.168.0.2:2222
box2$

box3$ plakar -store plakar://192.168.0.2:2222 push /bin
998964ac-d3f6-4bf3-b784-50ba616e0776: OK
$

From the local user point of view, pushing to a local plakar, to a remote plakar, or even to a remote plakar proxying to another plakar work the same.

Is it released ?

Nope, not yet.

This is a PoC and my first real project in Golang, so I need a bit of time to make sure it is in a state that I’m not ashamed to release.

If you are a sponsor and want to give it a try, just mail me and I’ll arrange that.

What’s next ?

A lot of things really…

First of all, every single command needs a bit of polishing to have a nice feel because the output is not always the best to work with.

Then, I have not implemented any caching whatsoever so even though it’s not dead slow, a lot of operations that could be skipped are always performed making it slower than it should.

Also, the server mode doesn’t use encryption at this point and while it is ok on a personal network, I want to be able to deploy a plakar server on a dedicated server at some provider and use it safely.

Finally, I began building an UI to browse snapshots and this requires building a global index of snapshots, which is something I haven’t tackled yet. At this point, each snapshot has its own index but I’d like to be able to have a search box which looks up for stuff through all snapshots.

I also have other private plans with this which I’ll discuss later ;-)


Comments: https://github.com/poolpOrg/poolp.org/issues/86
